Wheel balancer Invento VB 780

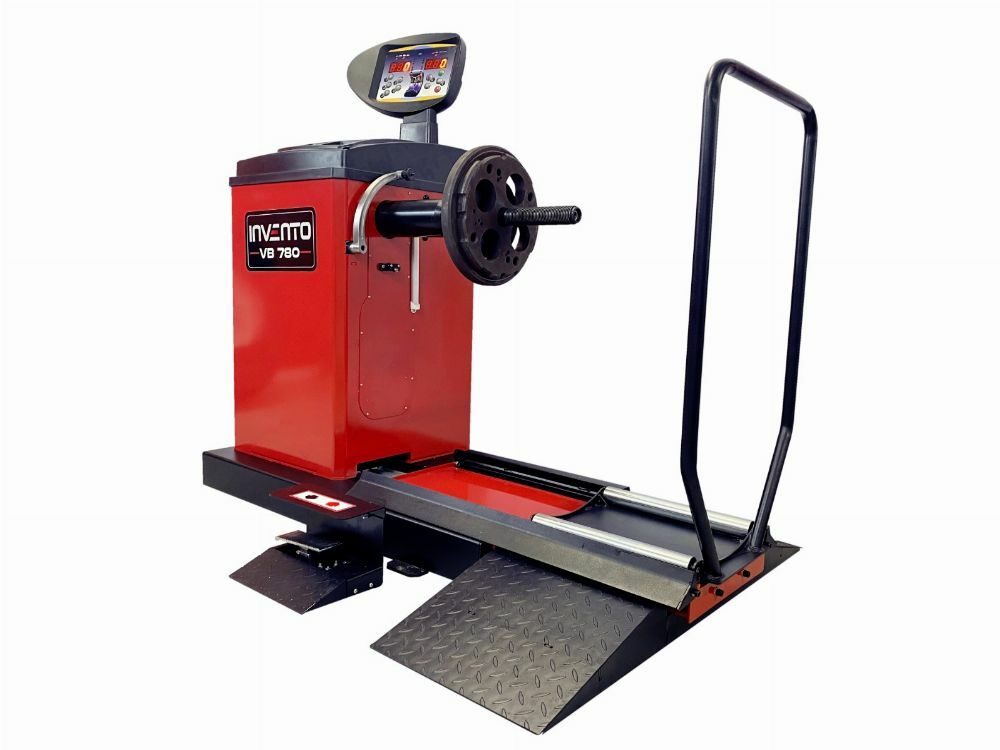

Automated Wheel Balancer Invento VB 780
The Invento VB 780 is a modern automated wheel balancer, perfect for use with both heavy-duty and passenger vehicles. Equipped with advanced features to meet the expectations of professionals, it allows for precise and efficient wheel balancing with a maximum weight capacity of 200 kg.

Key Features:

• LED Screen: A bright and clear LED screen ensures comfort and clarity during operation.

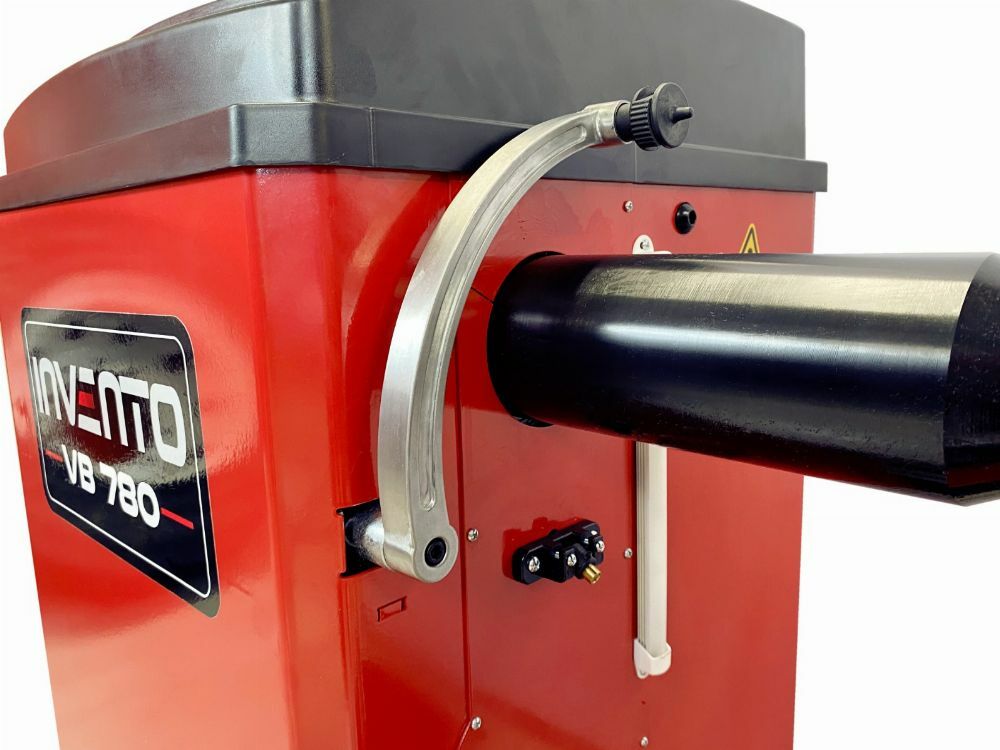

• Measuring Arm: Enables quick measurement of the distance from the shaft and wheel diameter, significantly reducing balancing time.
• Advanced Balancing Programs: The intuitive Italian software offers a wide selection of programs, including 3 ALU programs for precise placement of weights.
• Automatic Stop Function: Stops the wheel automatically at the unbalanced position.

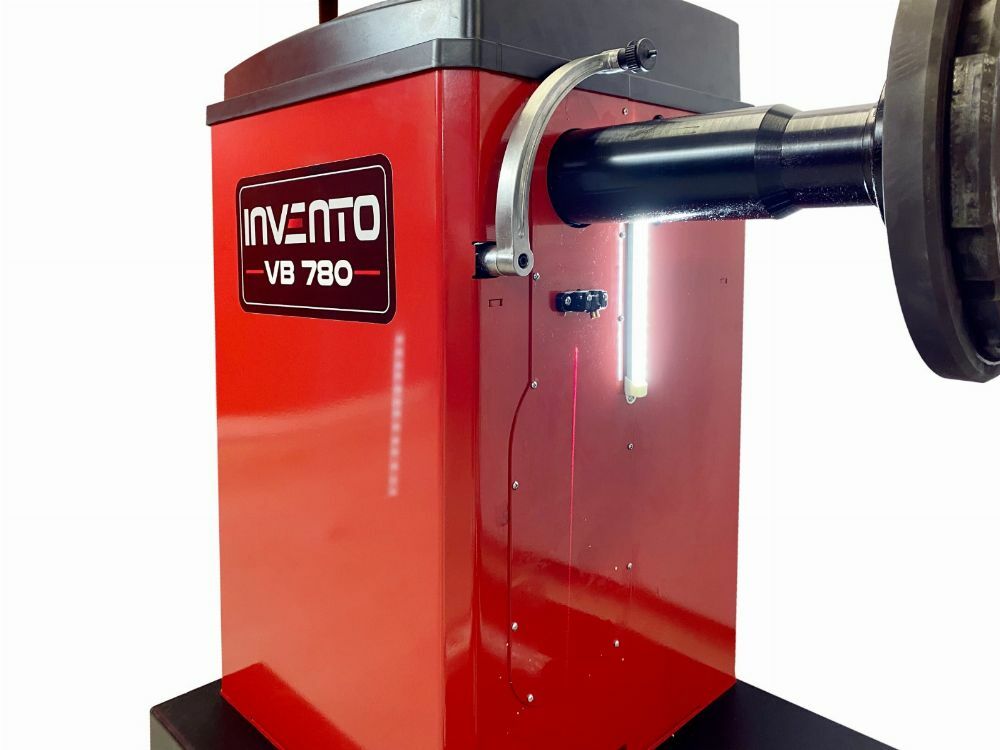

• Laser Pointer: A precise laser pointer marks the exact location for the weight at the 6 o’clock position.
• Lift: The lift allows easy raising of wheels weighing up to 200 kg.

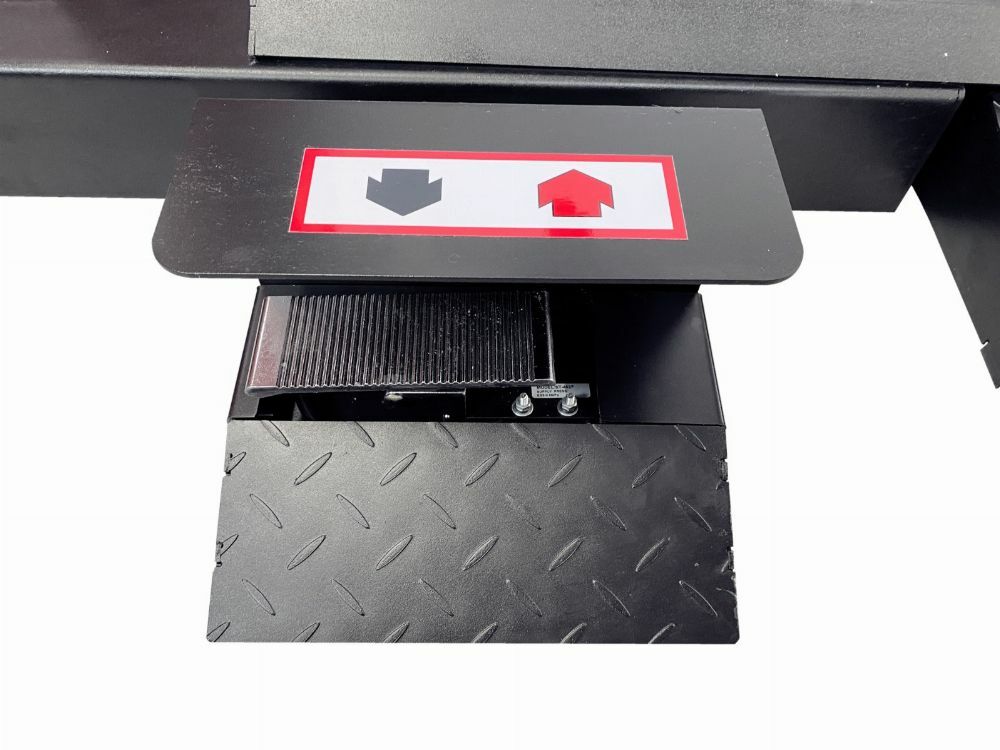

• Foot Brake: Provides greater stability when installing weights.

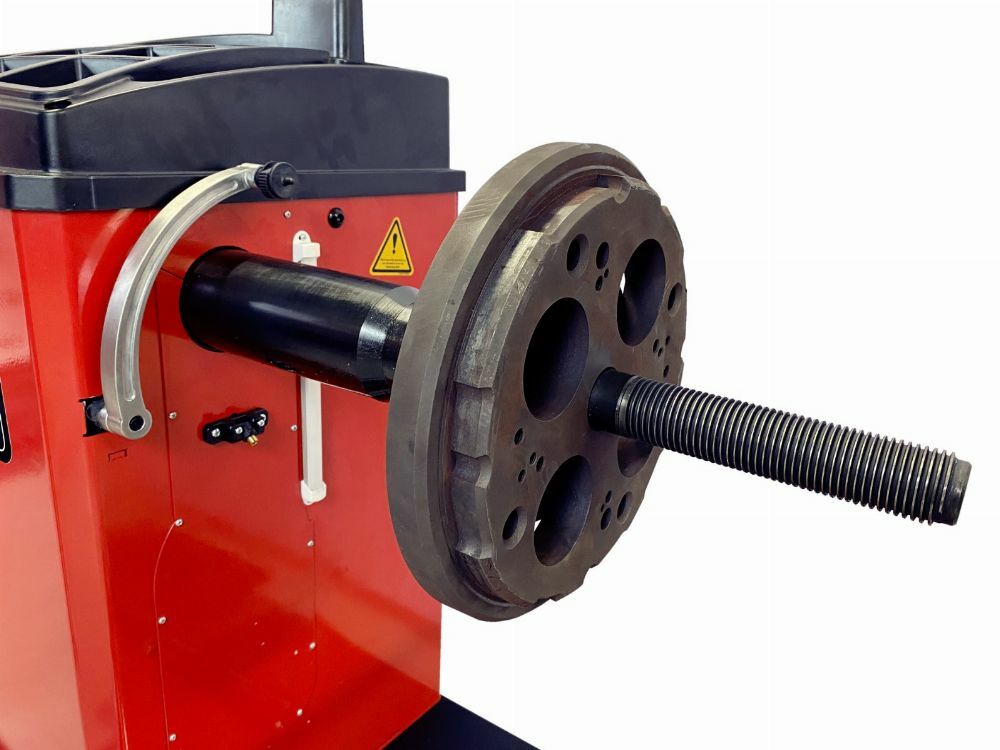

• Weight Holder INVENTO: The set includes a centering adapter for truck wheels and a spacer flange, including two “stars” – a four-armed and five-armed one.
• Self-Calibrating System: The user can perform the calibration of the measuring system to ensure accurate readings.
• Low Noise Level: The special motor ensures quiet operation, increasing user comfort.

Standard Equipment:

• Weight holder
• Wheel guard
• Weight fitting pliers
• Width measurement caliper

The Invento VB 780 is a reliable and precise device that will surely meet the expectations of even the most demanding users.

• Rim diameter: 10 – 28”
• Rim width: 2 – 20”
• Maximum wheel weight: 200 kg
• Balancing accuracy: 1 g – 10 g
• Measurement time: 9 s / 20 s
• Shaft diameter: 40 x 4 mm
• Rotation speed: 80-200 rpm
• Machine weight: 220 kg
• Dimensions: 1600 x 1100 x 1480 mm
• Power supply: 230 V, 50 Hz
• Warranty: 12 months
