Wheel balancer Invento VB 780
Description

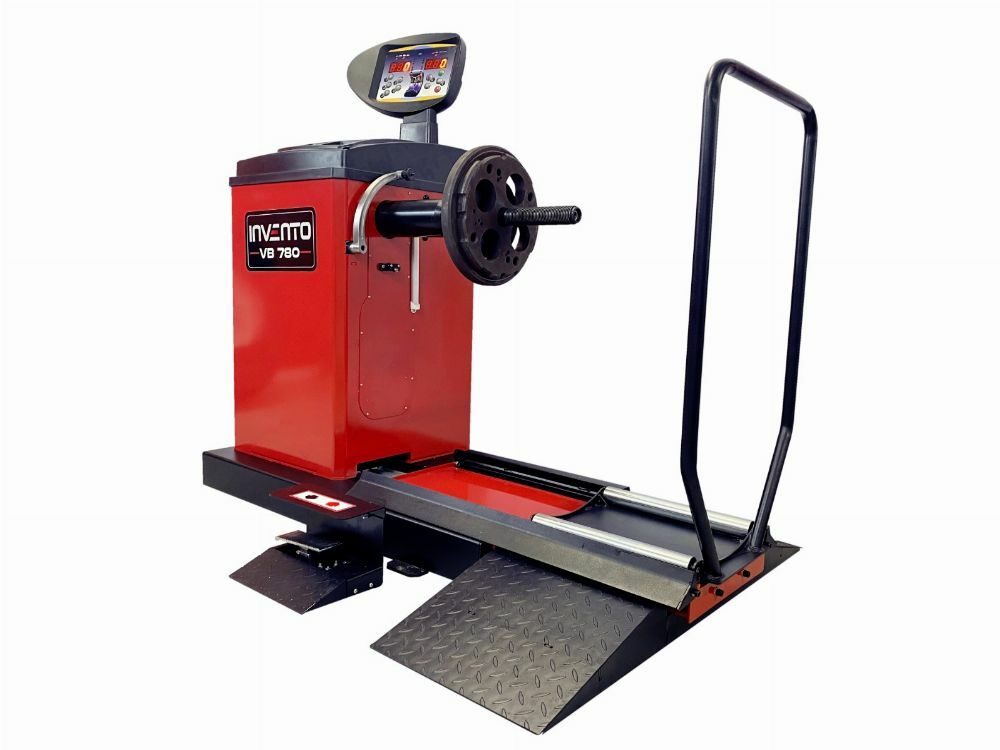

The Invento VB 780 is a new machine designed for handling the wheels of trucks and passenger cars with a lift with a lifting capacity of up to 200 kg.
Detailed description
INVENTO VB 780 wheel balancer for trucks and passenger cars.
Equipped with the most important elements and functions that meet the expectations of professionals.
The maximum weight of a balanced wheel is 200 kg.
LED screen
A clear screen means comfort and clarity while working on the device.

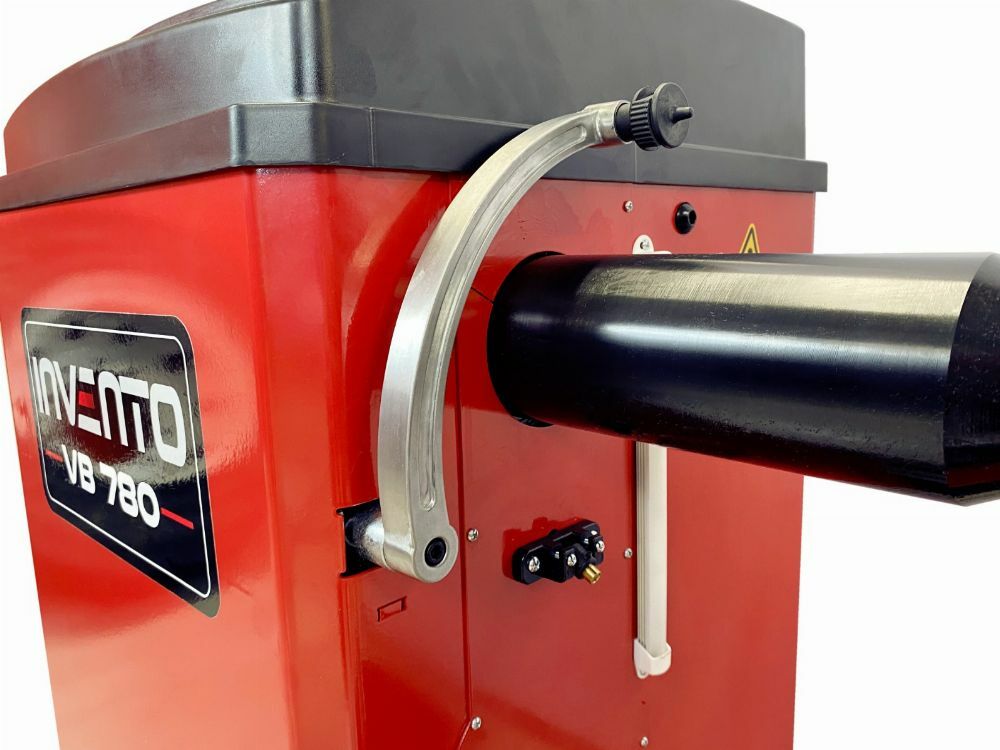

Measuring arm
Measurement of the distance from the shaft and wheel diameter is carried out using a measuring arm, which significantly reduces the time of the balancing operation.
Balancing programs
Italian intuitive software and a wide selection of programs, including 3 ALU programs, allow for precise selection of weight placement variants.
Automatic stop
The software makes it possible to stop the wheel at the point of imbalance.

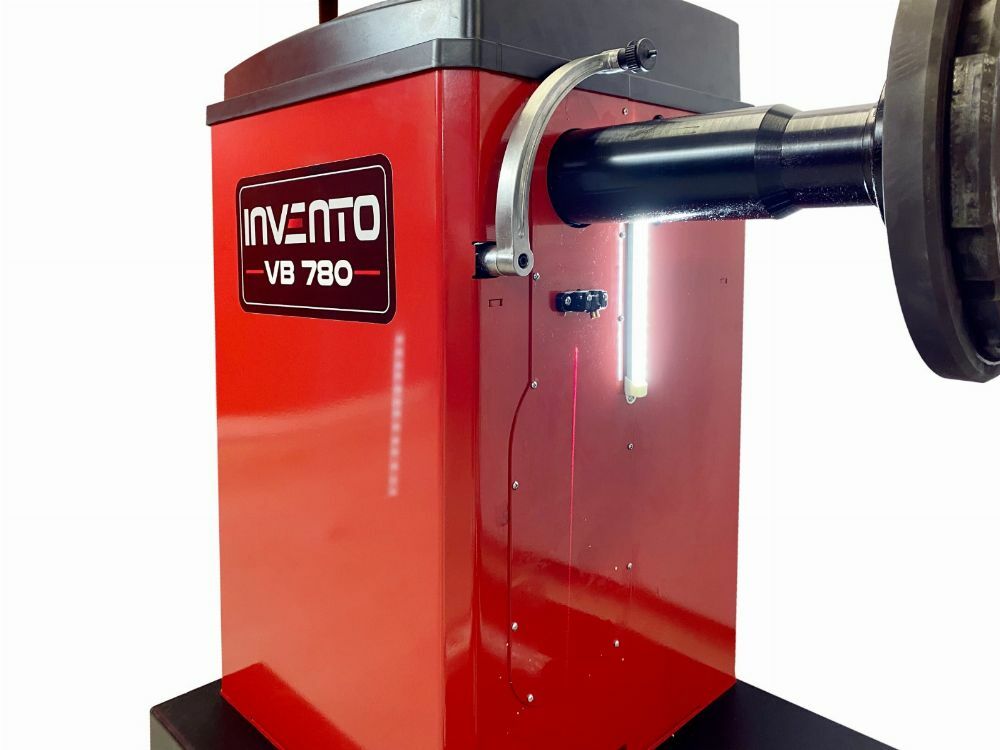

Laser
The INVENTO VB780 has a laser pointer that accurately indicates the place of sticking the weight at 6 o’clock.
Wheel lifter
Lift with a wheel load capacity of up to 200 kg.
Brake
INVENTO VB 780 is equipped with a automatic for greater stability during weight assembly.

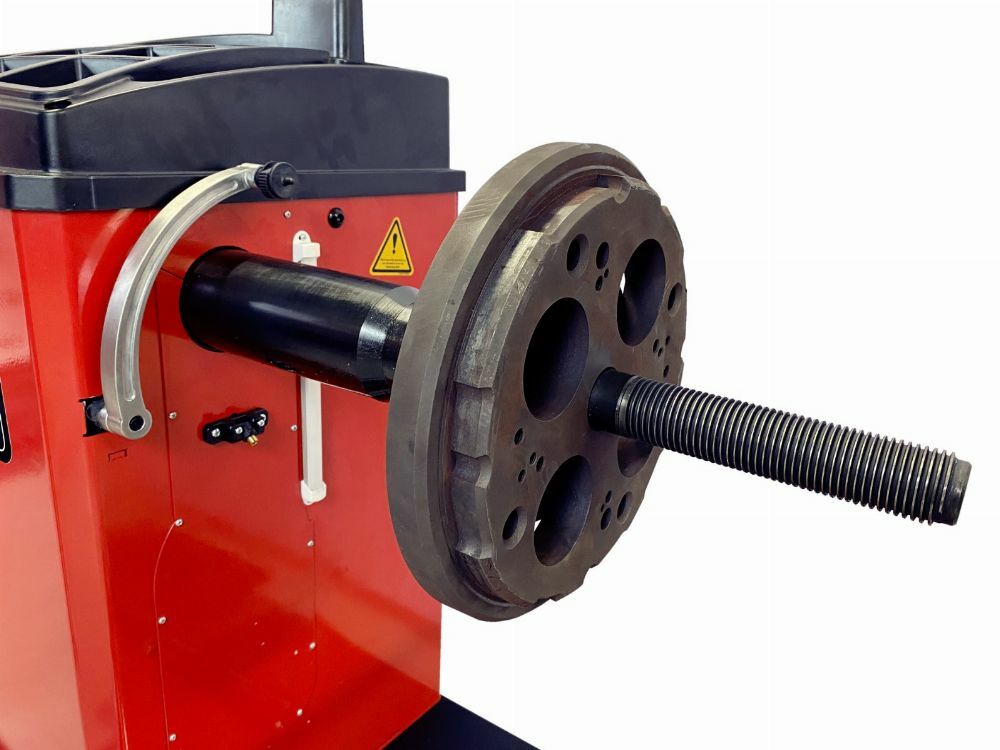

Truck adapter
Included with the machine is a centering adapter for truck wheels.
Autocalibration system
The user can adjust the measuring system of the machine on his own in the event of suspicion of incorrect indication of the place and size of the unbalance.
Noise
The balancing machine has a special motor that does not emit too much noise, which contributes to greater comfort during operation.
Standard equipment
- Truck adaptor
- Weight-loading tongs
- Calliper
Technical data
- Rim diameter 10 – 28”
- Rim width 2-20”
- Maximum wheel weight 200 kg
- Balancing accuracy 1 g-10 g
- Time of measurement 9/20 s
- Shaft diameter 40 mm
- Rotation speed 80-200 rpm.
- Device weight 220 kg
- Dimension 1600x1100x1480
- Power 400 V, 50 Hz
- Guarantee 12 month
