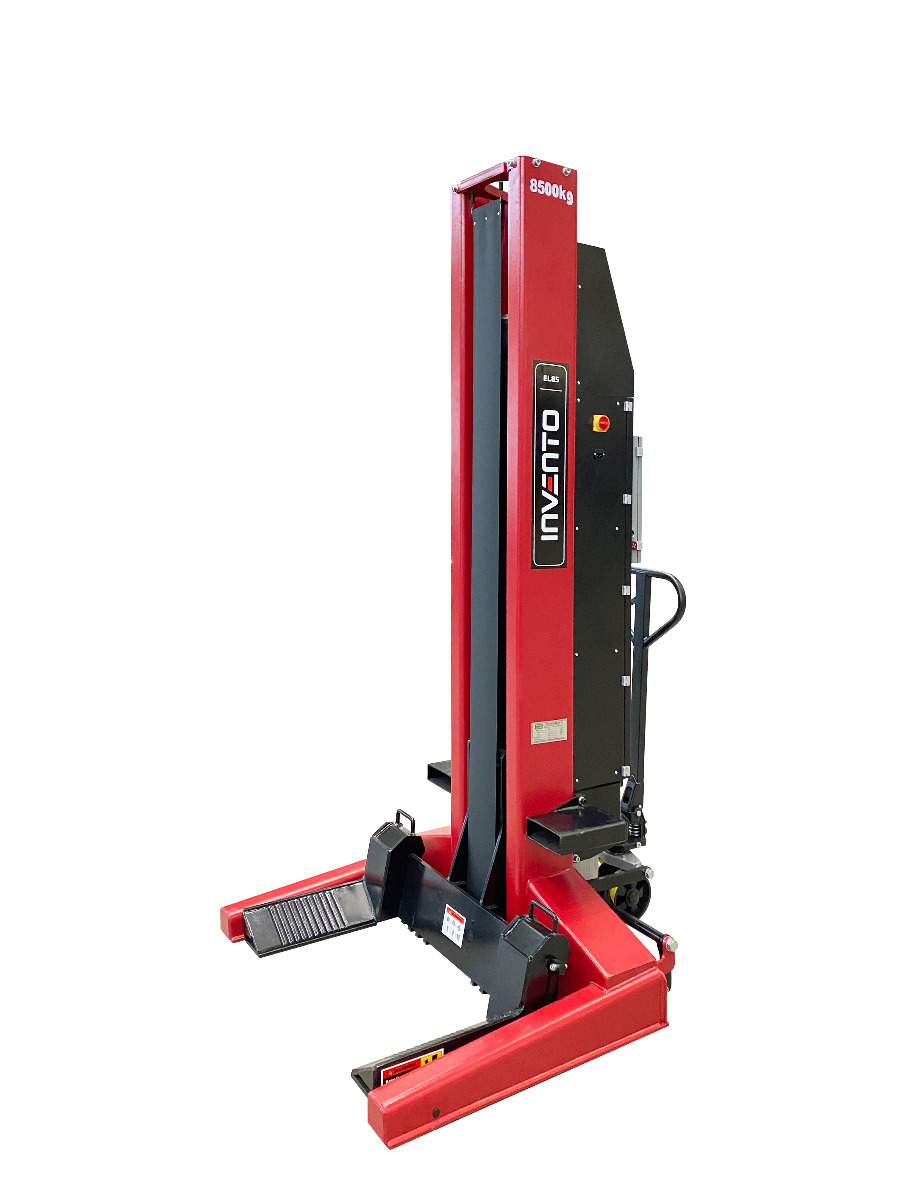

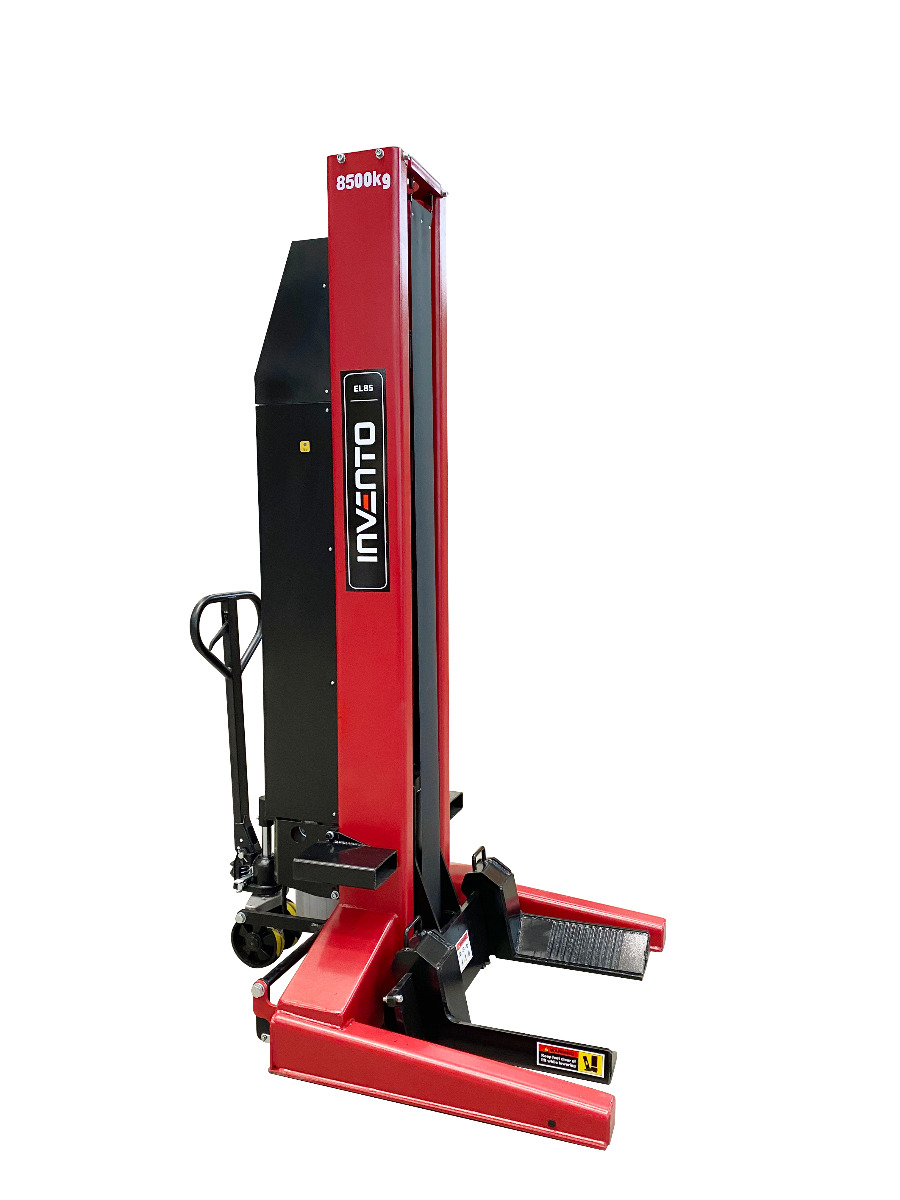

INVENTO EL 85 – Wireless adjustable columns 8.5T – set of 8 columns

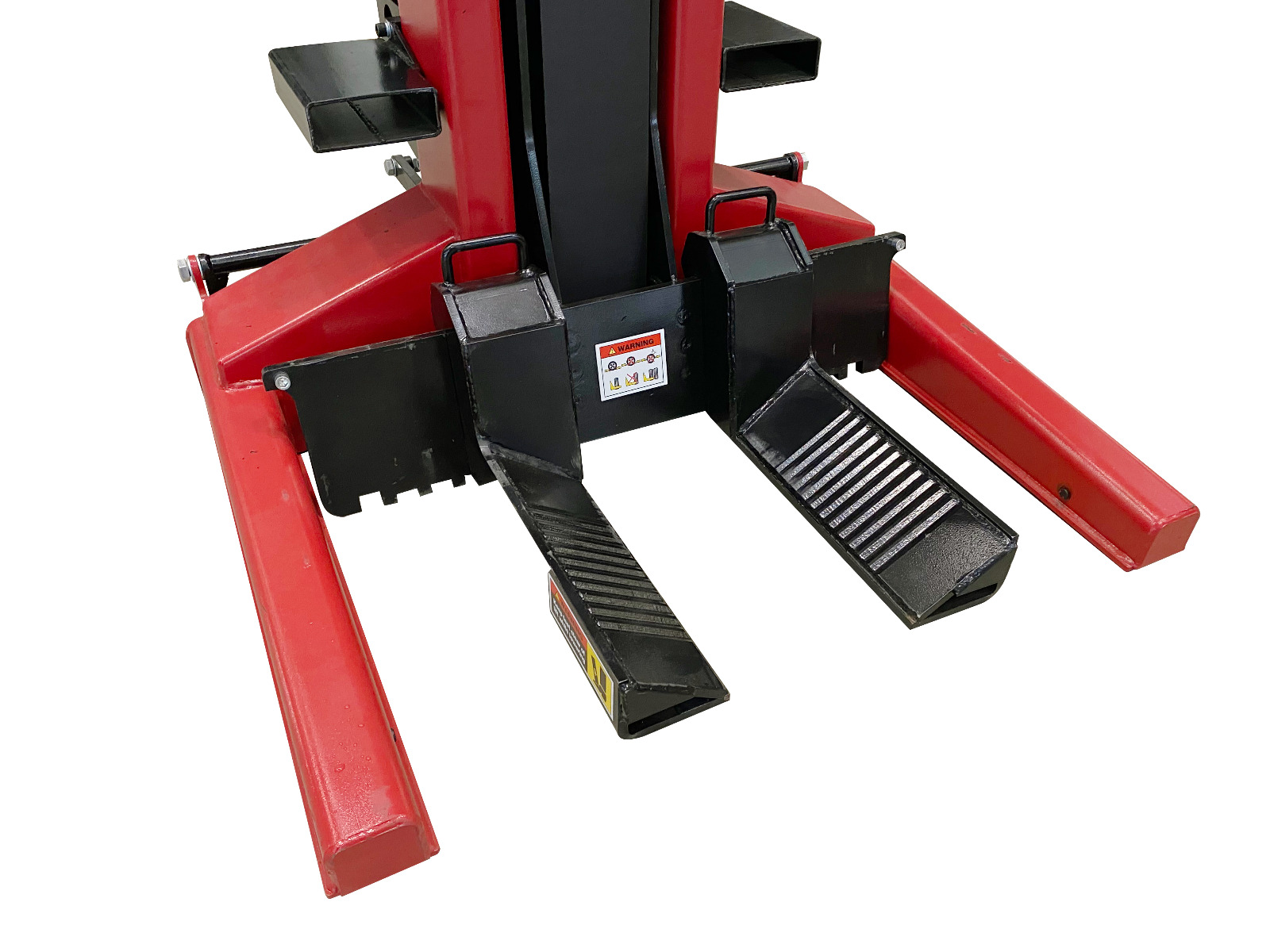

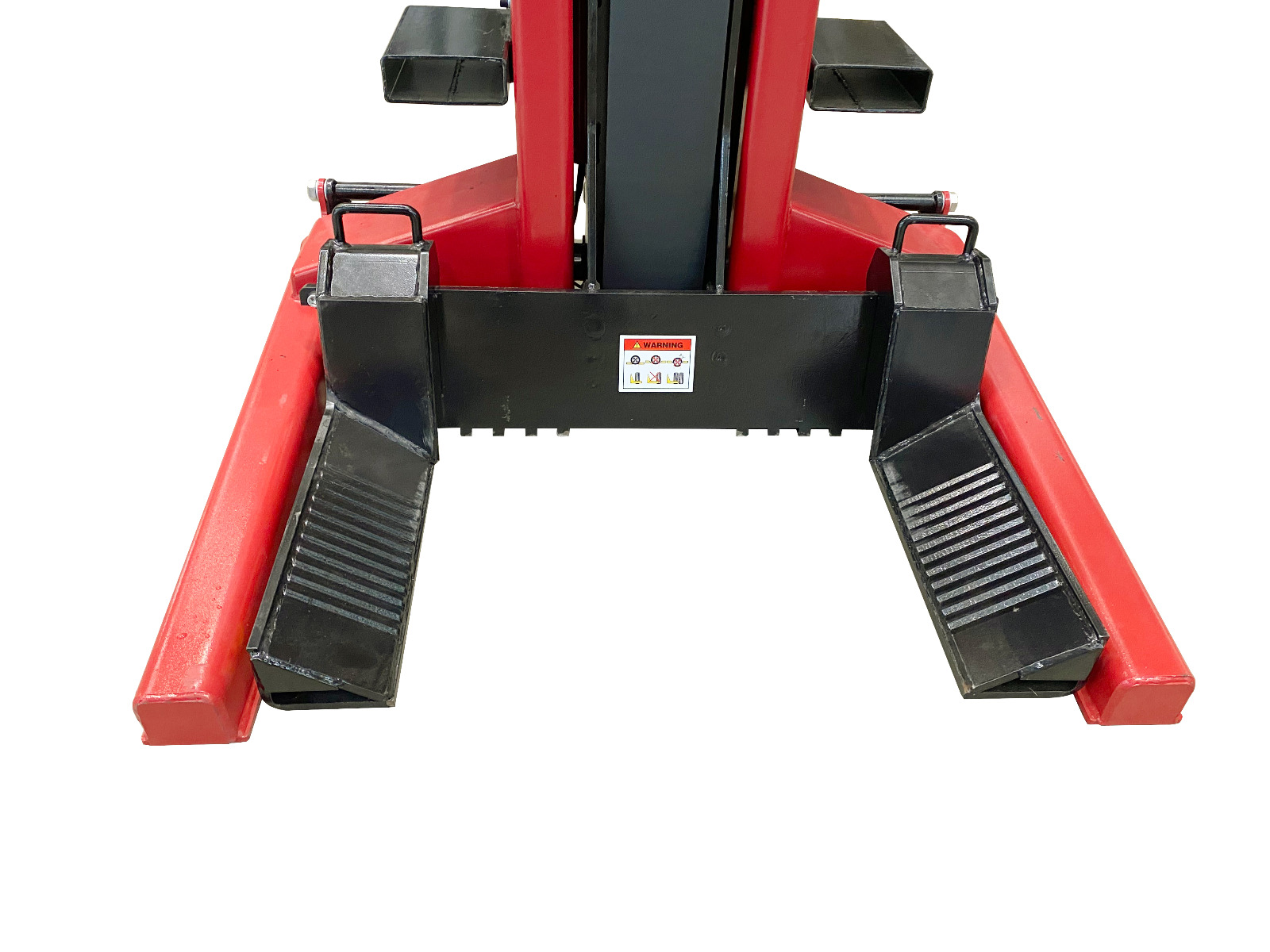

The columns are battery-powered, and wireless communication between them provides exceptional ease of use. The system can easily be expanded with additional columns, making it a flexible solution suited to various needs. Additionally, the adjustable fork spacing allows for versatile use of the device.

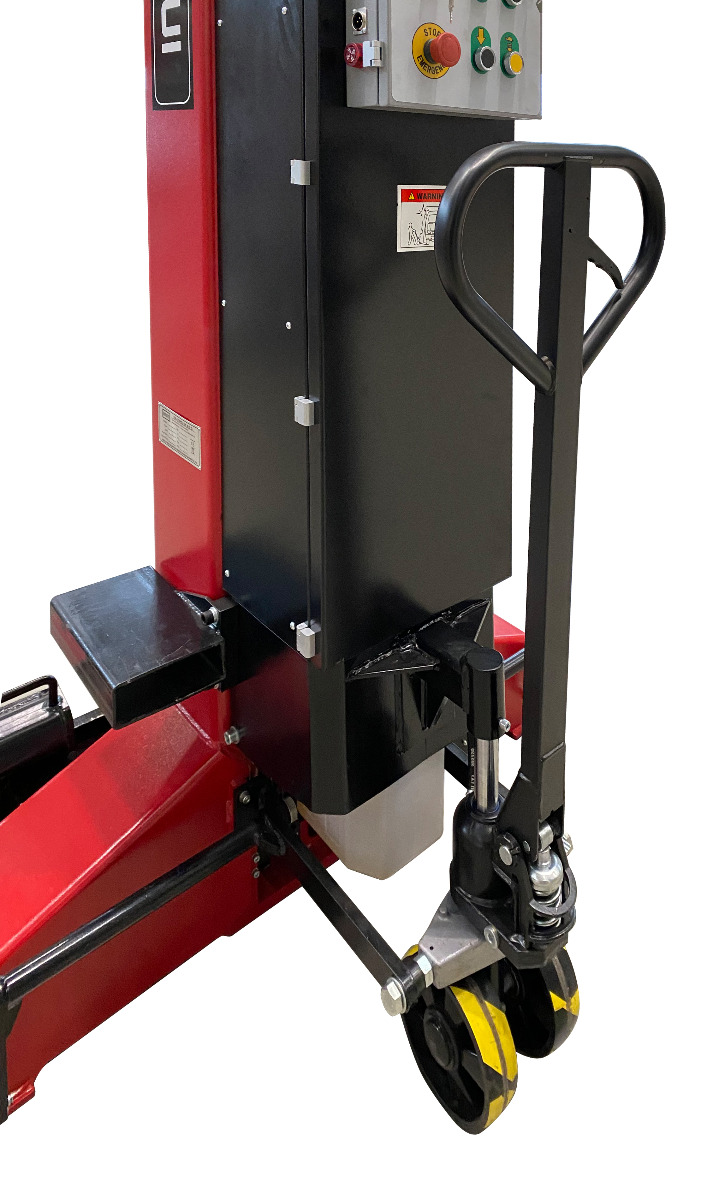

The system’s mobility is ensured by synthetic wheels and a hydraulic pallet mechanism with overload protection, making it easy to move the columns.

Key Features:

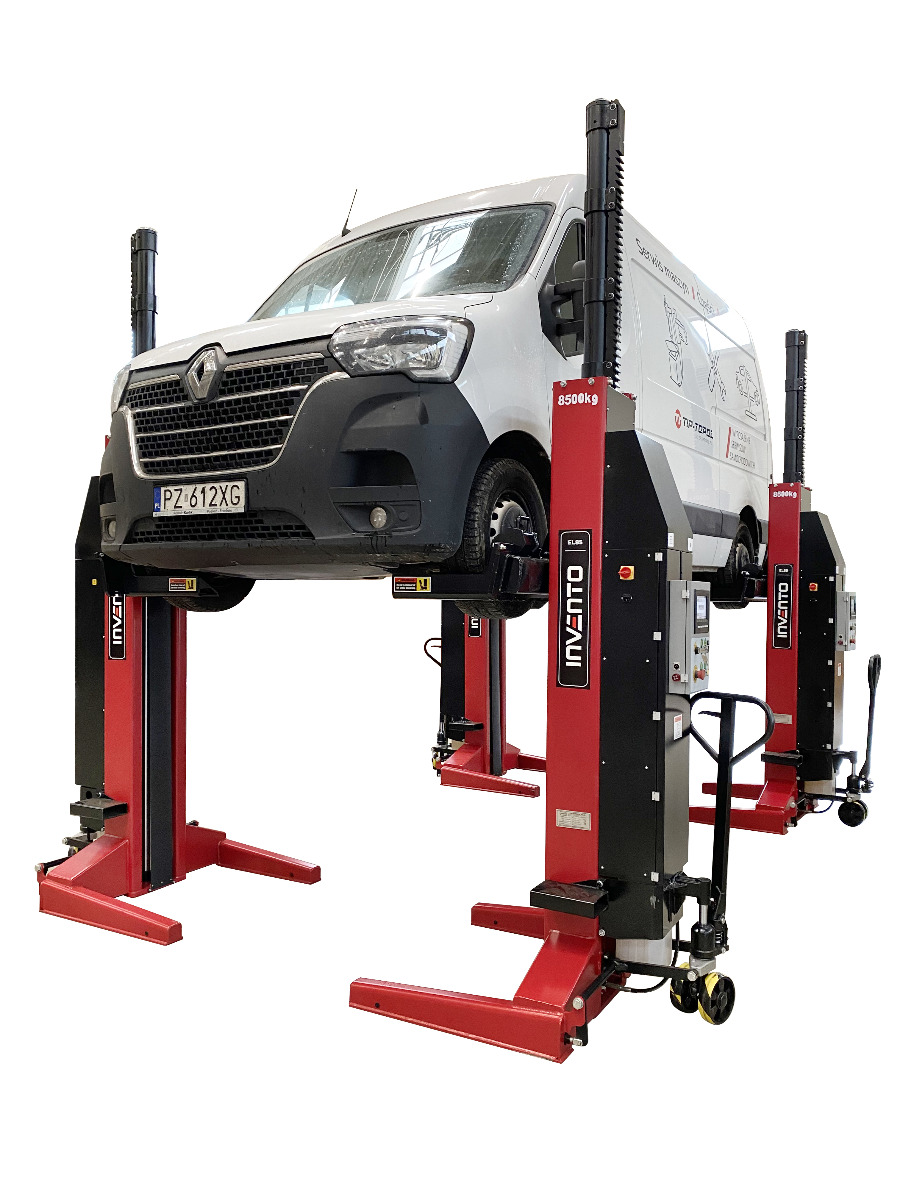

• Dedicated to servicing trucks, trailers, and machinery.
• Wireless communication between columns with the option for wired connection.
• Construction made of high-quality steel, ensuring durability and stability.
• Expandable system, supporting up to 96 columns.
• Versatile lifting configurations, allowing for flexible operation of the set.
• Hydraulic lifting system with safety valves to protect against overload.

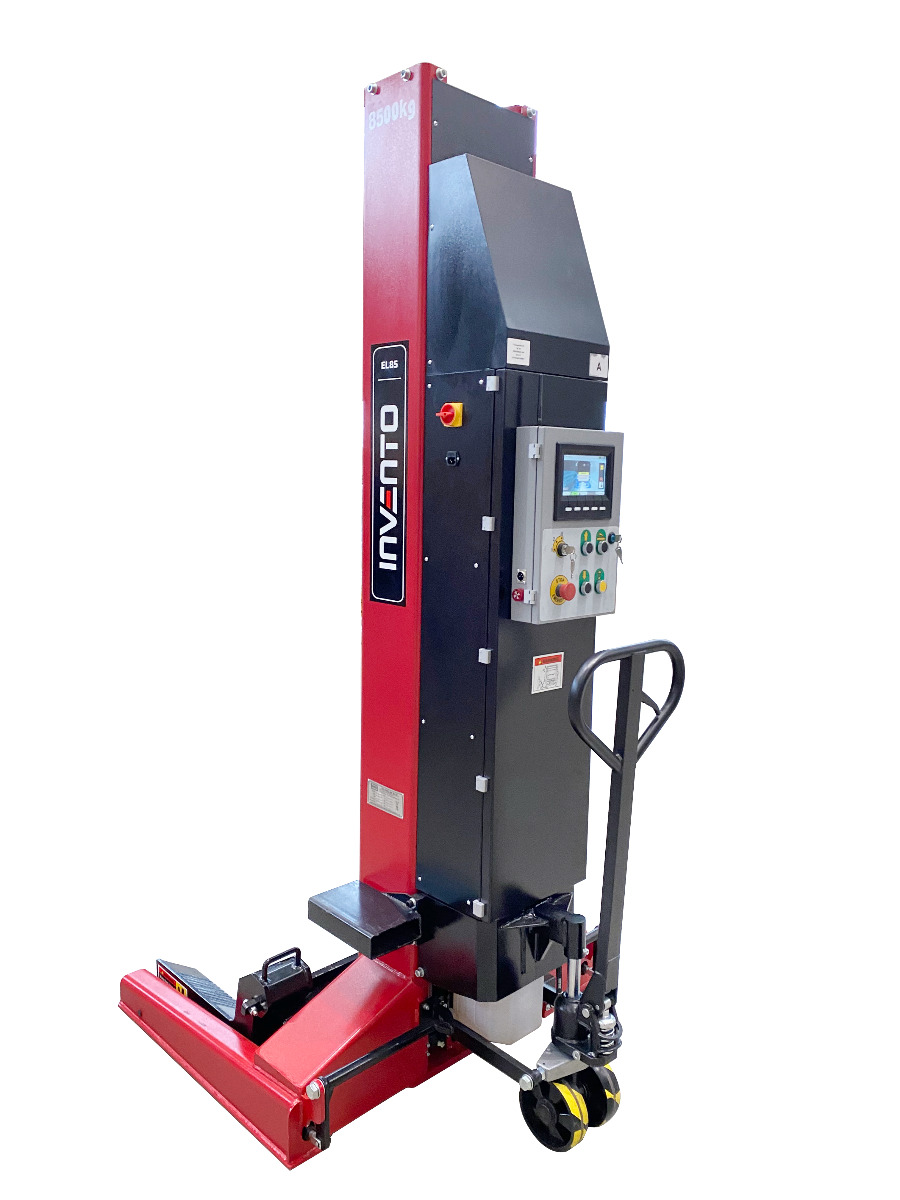

• Control panel with a color display on each column, enabling full control and synchronization of the entire set.
• Automatic mechanical locks controlled electromagnetically.
• Large touchscreen on the control column, enabling precise operation settings.
• Set powered by batteries charged via a 230V power supply, providing high autonomy.

Additional Safety Features: The system is equipped with microprocessor control, ensuring full synchronization of the columns and providing notifications in case of issues. A mechanical lock at the set height and a range of electrical protections, such as detecting improper connections, further enhance work safety.

Note: Price does not include commissioning or installation.

• Lifting capacity per column: 8,500 kg
• Lifting range: 0 – 1700 mm
• Adjustable arm spacing: 240 – 624 mm
• Maximum alignment error: 50 mm
• Total height when raised: 3,730 mm
• Lifting time: 120 seconds
• Lowering time: 70 seconds
• Noise level: 80 dB(A)
• Operating temperature: 0°C – 40°C
• Column weight: 780 kg
