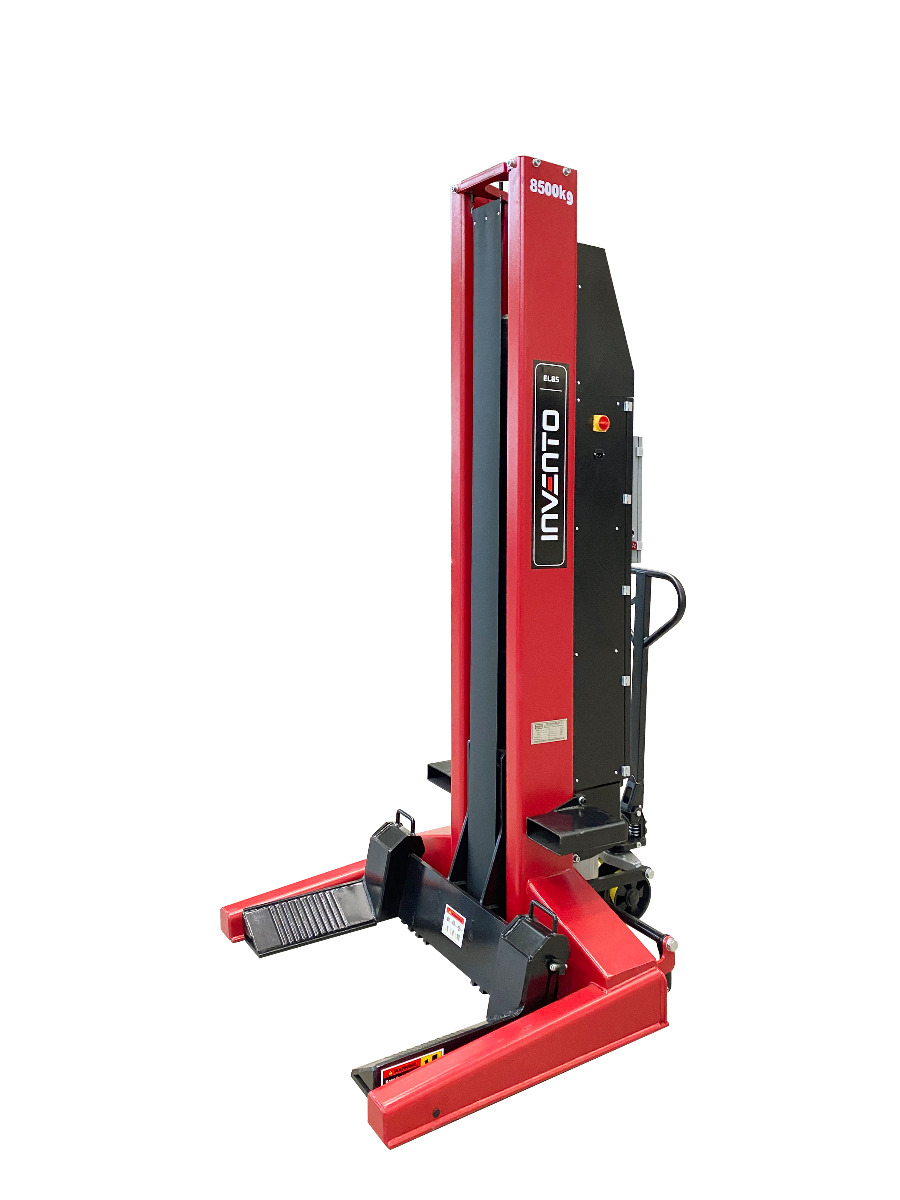

INVENTO EL 85 – Wireless adjustable columns 8.5T – set of 4 columns

INVENTO EL 85 is a set of mobile adjustable columns with a lifting capacity of 8.5 tons per column, which in a set of 4 columns gives a total of as much as 34 tons! The columns are battery-powered, and wireless communication between the columns ensures high comfort and convenience of work!Additionally, they have an adjustable fork spacing and can be expanded with additional columns at any time. INVENTO EL 85 mobile column lifts are "mobile", which means they can be moved very easily on synthetic wheels using a hydraulic pallet mechanism with overload protection. Specification: Designed for trucks, trailers and machines, Communication between the columns is wireless (cables included, allowing for cable connection), A set of mobile columns made of high-quality materials, with thick steel sections, guaranteeing strength and stability, Possibility of expansion with a larger number of columns (up to 96 in total), Possibility to set different heights between pairs of columns, e.g. for lifting a tractor with a semi-trailer, Lifting by hydraulic pistons equipped with a safety valve located inside the cylinder to prevent accidental damage and overload, Electro-hydraulic control system ensuring alignment and synchronization of the trolleys, controlled by a control panel with a color display on each column (control possible from any column in the set), The system is equipped with anti-overload valves, Mechanical safety interlocks with electromagnetically controlled automatic function, The control column has a large touch screen for setting the lifting parameters of the entire set, including the lifting height and the number of columns involved in a given operation. The screen visualizes the current situation and displays advice and messages about problems, Each column is equipped with a set of 2 of its own high-capacity batteries, charged with 230V current, giving the entire system high autonomy (no cable connections between the columns). Features of the lift: The columns have microprocessor control, which ensures full synchronization of the set and safety, The lifts have a number of electrical protections, including: informing about incorrect connection of the columns and the operation of the lift, Mechanical locking of the set height, Columns with a lifting capacity of 8,500 kg per column, Adjustable fork spacing replacing adapters, Possibility to set different heights between pairs of columns.

Capacity 8 500 kg Range of lifting 0 - 1700 mm Width between two lifting forks adjustable 240 - 624 mm Max. synchronization error between columns 50 mm Overall height 3 730 mm Lifting time 120 s Lowering time 70 s Noise level 80 dB(A) / 1 m Working temperature 0°C - 40°C Package weight 780 kg
