INVENTO EL 85 – Wireless adjustable columns 8.5T – set of 6 columns

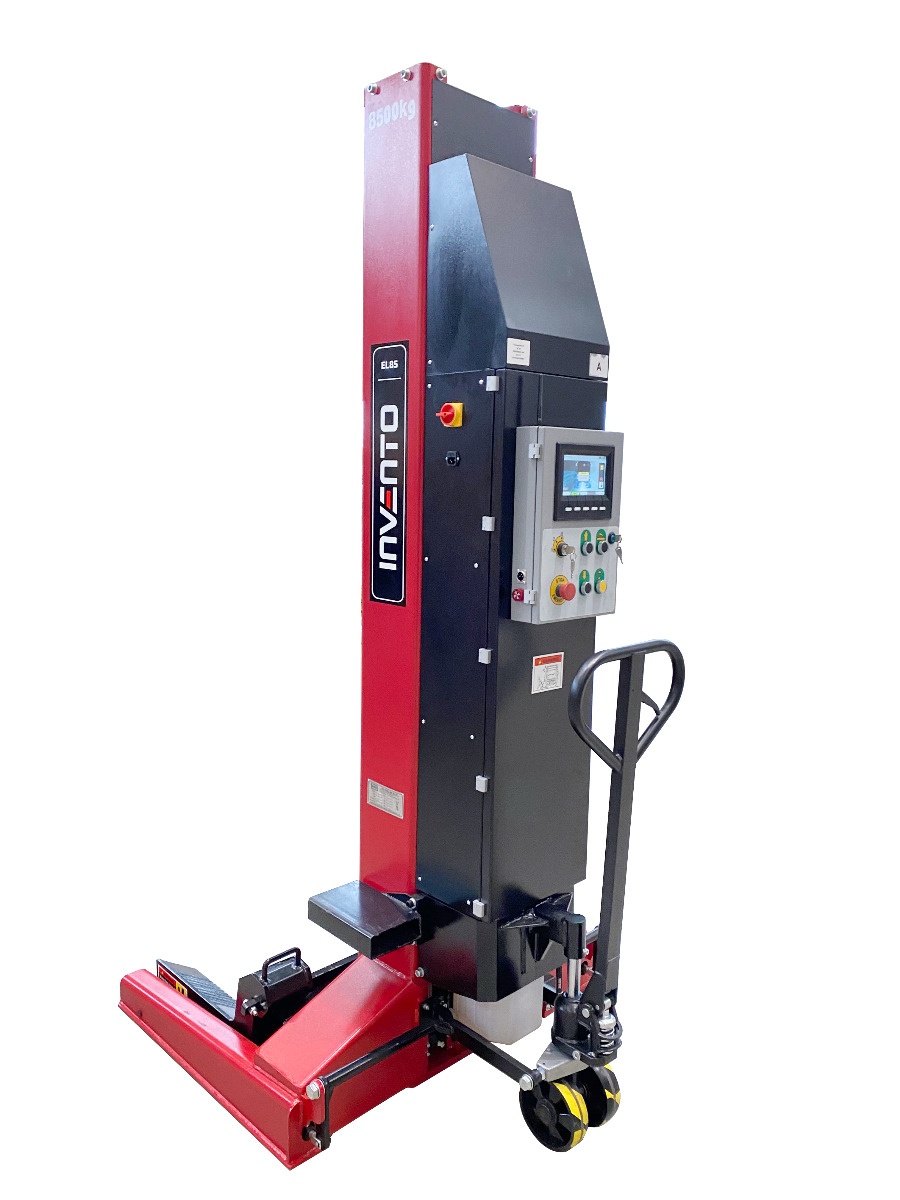

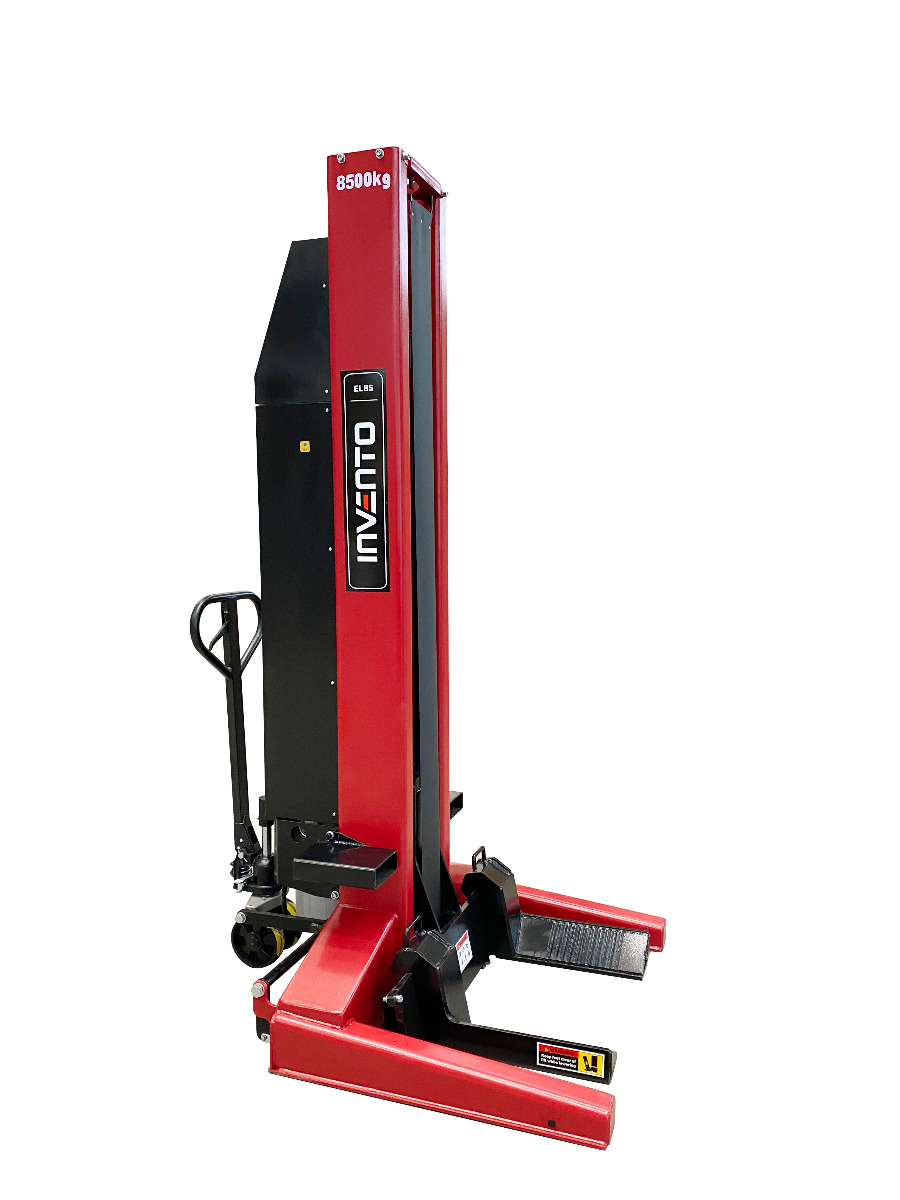

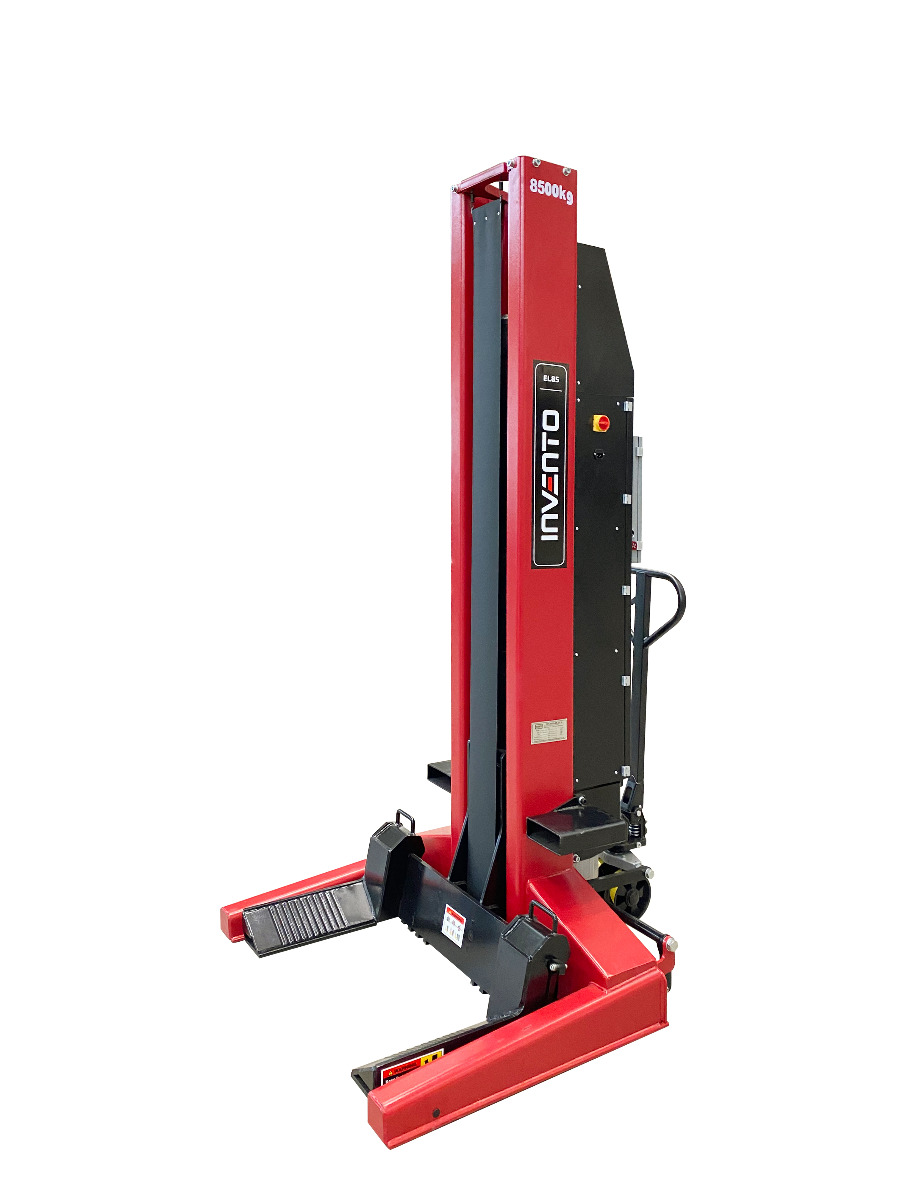

INVENTO EL 85 – High-Performance Mobile Column Lift

INVENTO EL 85 is an advanced column lift that offers unmatched mobility and flexibility for working with trucks, trailers, and machinery. With an impressive lifting capacity of 8.5 tons per column, a set of four columns allows for the simultaneous lifting of up to 51 tons, making it the ideal solution for demanding service and repair operations.

Wireless Technology and Ease of Operation Battery-powered columns communicate wirelessly, providing exceptional user comfort and full freedom during work. The adjustable fork spacing allows for easy adaptation of the lift to various vehicles, and the system can be expanded with additional columns at any time, even up to 96 units.

Mobility and Safety Thanks to synthetic wheels and a hydraulic pallet mechanism with overload protection, the lift is fully mobile and easy to move around the workshop. Additional features such as the electro-hydraulic control system and mechanical safety locks ensure not only easy operation but also complete safety during lifting.

Key Features of INVENTO EL 85:

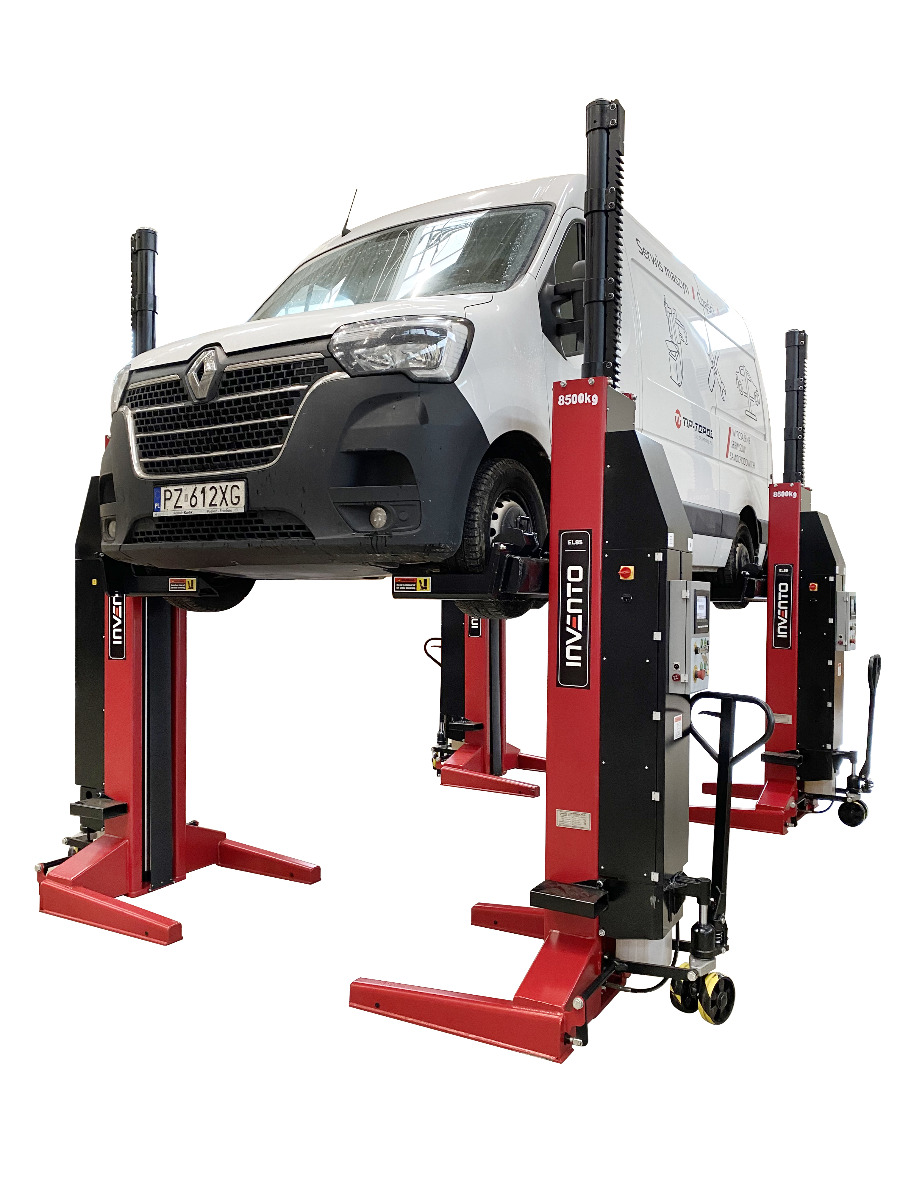

• Compatibility with trucks, trailers, and machinery – a wide range of applications.
• Wireless communication between columns, with the option for wired connection when needed.
• Sturdy construction – high-quality steel materials ensure durability and stability.
• System expansion – the ability to increase the number of columns to 96.
• Precise lifting – hydraulic cylinders with integrated safety valves.
• Control panel with a color display – intuitive operation of all columns from any unit.
• Automatic safety locks – electromagnetically controlled for added security.

Additional Benefits: The columns are equipped with a modern microprocessor control system that ensures full synchronization and reliability during lifting. Users have full control through the touchscreen, where key parameters, such as lifting height or number of active columns, can be set.

Note: Price does not include commissioning or installation.

• Lifting capacity per column: 8,500 kg
• Lifting range: 0 – 1700 mm

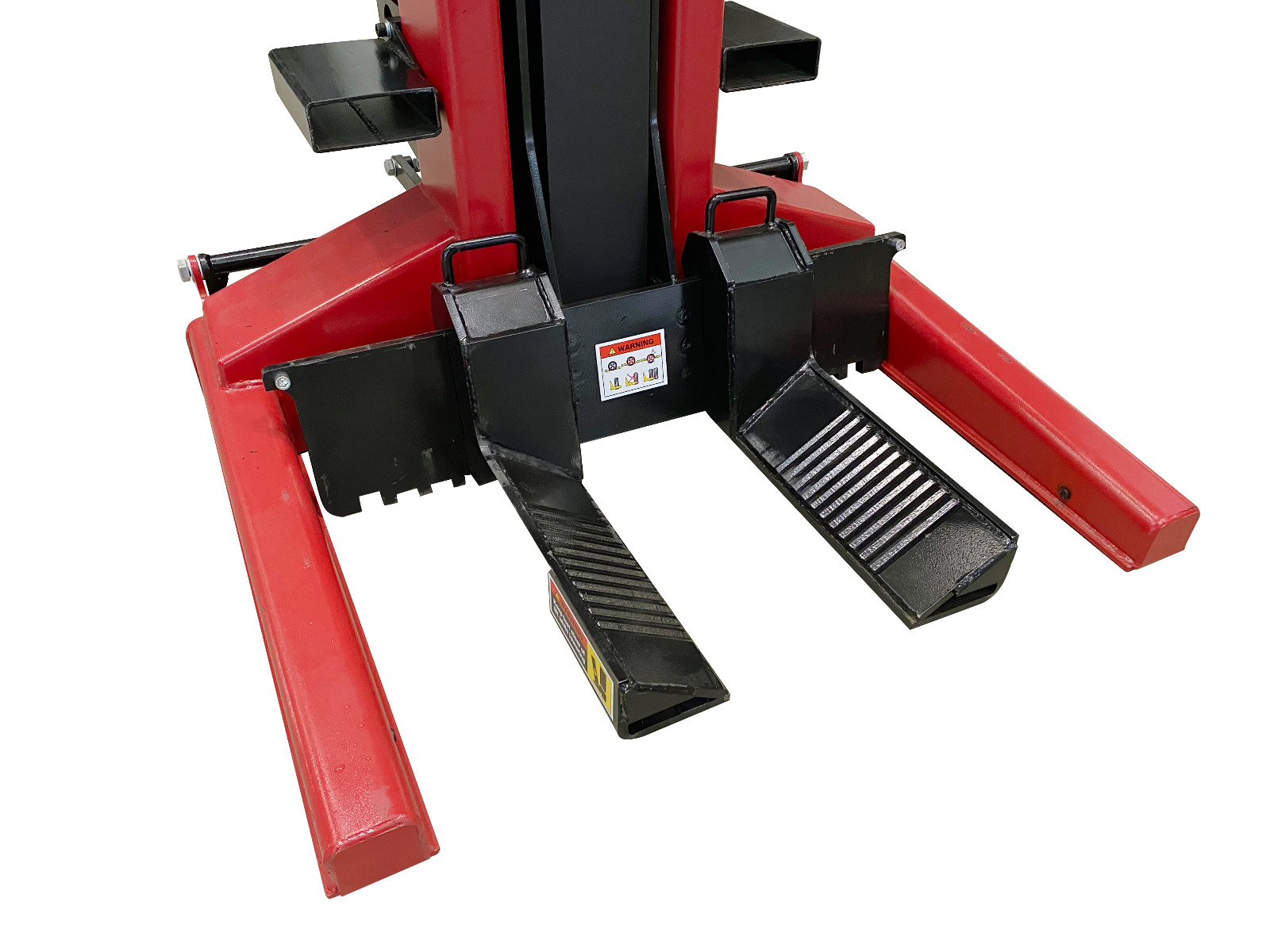

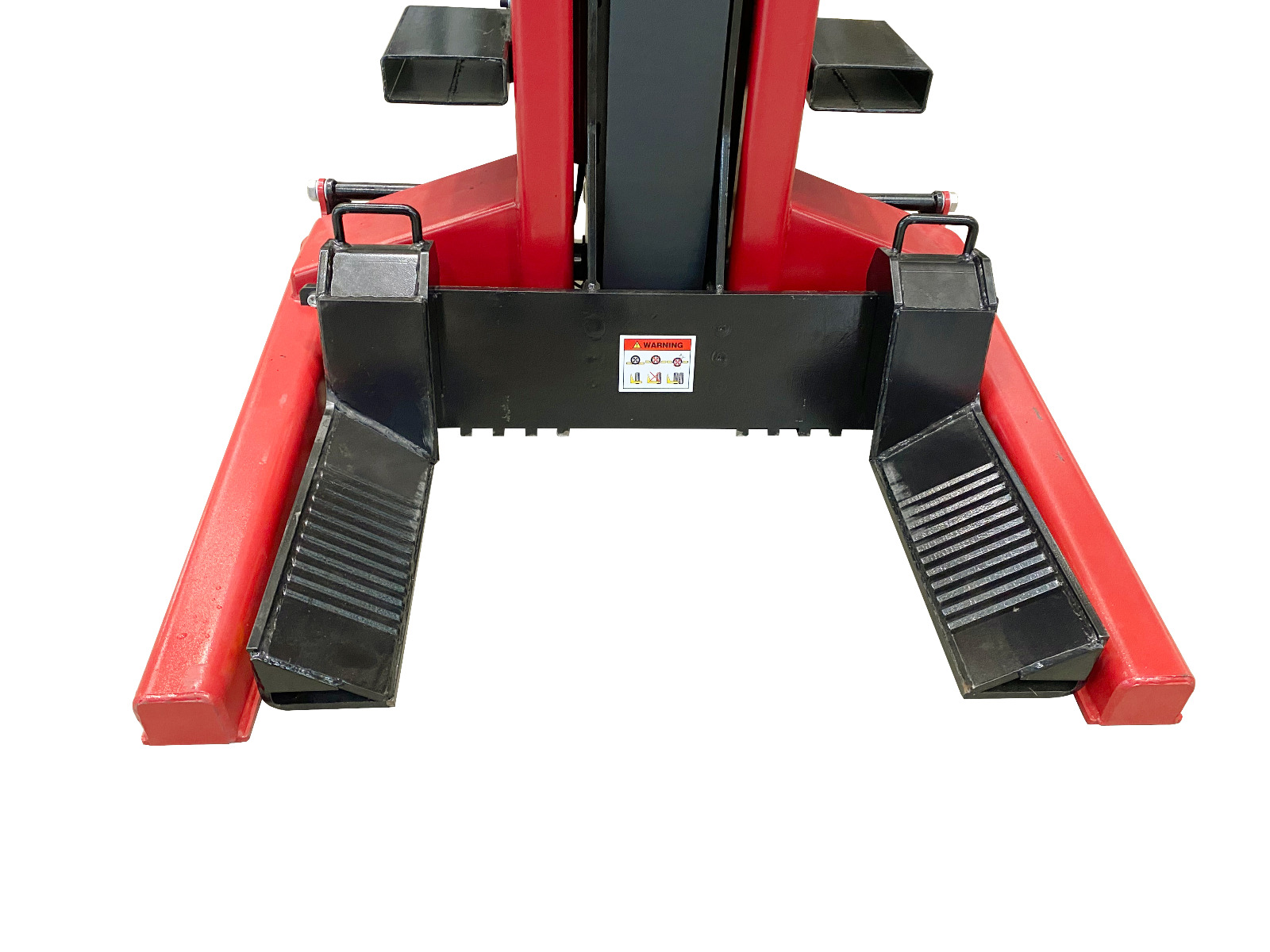

• Adjustable fork width: 240 – 624 mm
• Maximum alignment error between columns: 50 mm
• Total height (when arms are raised): 3,730 mm
• Lifting time: 120 seconds
• Lowering time: 70 seconds
• Noise level: 80 dB(A) / 1 m
• Column weight: 780 kg
