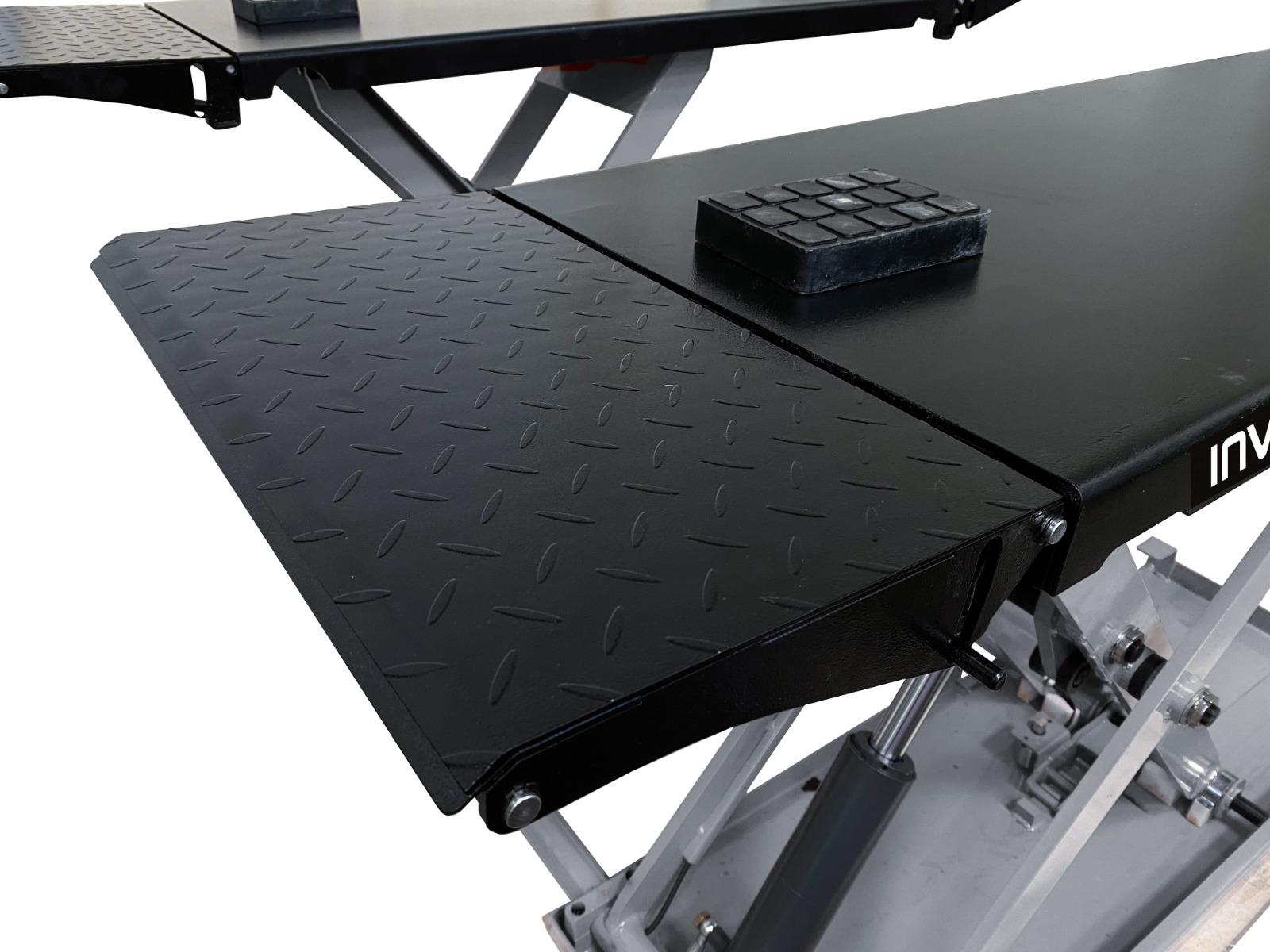

INVENTO SL S35 3,5 T 230V – Scissor lift
Description
The INVENTO SL S35 is a floor-mounted lift designed to raise vehicles weighing up to 3.5 tonnes to a height of 1 meter, equipped with a mobile kit.
Detailed description
The INVENTO SL S35 is a robust, floor-mounted vehicle lift designed for lifting vehicles weighing up to 3 tons to a height of 1 meter. Ideal for use in tire fitting, repair, and mechanical workshops, it streamlines tasks like brake pad and disc replacements.
Key features include:
- 230V electric power supply
- Safety lock for secure operation
- Compact design for easy integration into workshops
- Synchronized platform movement
- Adjustable platform length between 1400 mm and 1940 mm
- Mobility kit for straightforward relocation
The INVENTO SL S35 meets CE safety standards, ensuring reliable and secure operation. Its installation is carried out by certified technicians from the Office of Technical Inspection (UDT). The lift is intended for use in covered, enclosed spaces, free from obstructions. It operates within a temperature range of -10°C to 40°C.
For installation, a strong, level concrete surface is required to support the lift’s maximum load capacity, even under challenging conditions.
Technical data
- Lifting Capacity: 3,500 kg
- Lifting Height: 1,000 mm
- Minimum Height: 110 mm
- Platform Length: 1,400 mm – 1,940 mm
- Platform Width: 520 mm
- Scissors Spacing: 800 mm
- Total Width: 1,860 mm
- Lifting Time: 60 seconds
- Electric Power Supply: 230V/50 Hz
- Power: 2.2 kW
